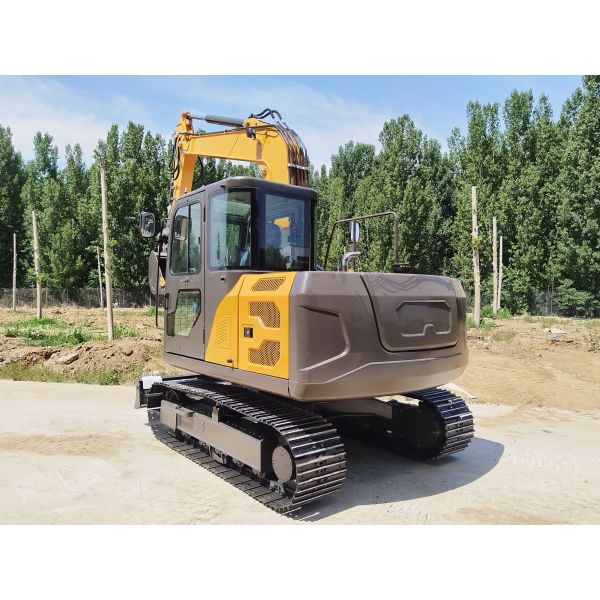

TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR

Name: TRACK RUBBER EXCAVATOR HX8075 75TONS RUBBER TRACK MINI EXCAVATOR
Brand: HXMG
Price: 28670 USD

Quality TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR wholesale

Brand Name : HXMG

Model Number : HX8075

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1 unit

Price : 28670USD

Payment Terms : T/T, Western Union

Supply Ability : 100 UNITS PER MONTH

Delivery Time : 15 WORKING DATE

Packaging Details : IN NUDE

Swing Speed : 0-11 rmp

Gradeablity : 35 °

Max Bucket Digging Force : 56 KN

Max Arm Digging Force : 38 KN

Engine Model : 4TNV94

Power / Revolution Speed : 35.9/2200KW/rpm

Operation Weight : 7500 kg

System Pressure : 27 Mpa

Bucket Capacity : 0.28 cbm

Contact Now

Key attributes

Bucket capacity

0.28m3

Moving Type

Crawler Excavator

Engine Brand

Yanmar

Hydraulic Pump Brand

HXMG

Hydraulic Cylinder Brand

HXMG

Hydraulic Valve Brand

HXMG

UNIQUE SELLING POINT

High operating efficiency

Warranty

1 Year

Make

HXMG

Machinery Test Report

Not Available

Video outgoing-inspection

Provided

Color

Yellow, White

Core Components

Motor, Pressure Vessel, Engine, PLC, Pump, Bearing, Gear

Brand Name

HXMG

Machine Weight

7500 kg

Max Digging Radius

6182mm

Maximum Digging Depth

3898mm

Maximum Digging Height

7023mm

Place of Origin

Shandong, China

Power(W)

43KW

Rated Speed

4.5km/h

Product name

7.5 Ton Crawler Excavator

Color

Yellow or customized

overseas

Free spare parts

Keywords

Chinese Mini Excavator Digger

Video technical support

Online support

Feature

Earth-moving Machinery Mini Excavator

Customization

LOGO

Track width

400mm

Application

BuildingAgricultureConstruction

MOQ

1 Piece

ENGINE
Emission Standard	Euro V
Make /Model	KUBOTA(V2607)
Power /Rotation speed	43/2000
Number of cylinder	4
TRACK SYSTEM
Maximum Travel speed	2.5/4.5km/h
Width of track shoe	450mm
Number of track shoe per side	39pcs
Number of upper roller per side	1
Number of bottom roller per side	5
PERFORMANCE PARAMETERS
Standard Bucket capacity	0.28m³
Swing speed	11rpm
Maximum Grade ability	35°
Maximum Bucket digging force	56KN
Maximum Arm digging force	38KN
Hydraulic system pressure	27Mpa
Machine weight	7500kg
Fuel tank	120L
Hydraulic oil tank	100L
MACHINE SIZE
Overall dimension (LWH)	6054mm2216mm2672mm
Height of cabin	2672mm
Track length on ground(Axle base)	2209mm
Track gauge	1745mm
Minimum Ground clearance	375mm
Swing radius at tail	1730mm
WORKING RANGE
Maximum Digging height	7023mm
Maximum Dumping height	5195mm
Maximum Digging depth	3898mm
Maximum Vertical digging depth	2968mm
Maximum Digging radius	6182mm
Minimum swing radius	1740mm
Maximum Lifting height of blade	382mm
Maximum Cutting depth of blade	332mm

PRODUCT CONFIGURATION


- KUBOTA engine, 43kw/2000rpm, Euro V EPA- Chinese pump, valves and motor
- Fully sealed cabin with A/C, LCD display, and LED lights
- Hydraulic joystick control system
- 450mm steel tracks & 0.28m³ bucket
- Hammer pipeline system
- Dozer blade included

TRACK /RUBBER EXCAVATOR HX8075 ,7.5TONS RUBBER TRACK ,MINI EXCAVATOR

Left-side

Middle

Right-side

FEATURES AT A GLANCE
